Mobile module4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
SIM switch2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
StatusSignal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Black/White listOperator black/white list
Band managementBand lock, Used band status display
BridgeDirect connection (bridge) between mobile ISP and device on LAN
PassthroughRouter assigns its mobile WAN IP address to another device on LAN
Multiple PDN (optional)Possibility to use different PDNs for multiple network access and services (not available in standard FW)
Wireless modeIEEE 802.11b/g/n, Access Point (AP), Station (STA)
WiFi securityWPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSIDSSID stealth mode and access control based on MAC address
WiFi usersup to 100 simultaneous connections
Wireless HotspotCaptive portal (Hotspot), internal/external Radius server, built in customizable landing page
WAN1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
RoutingStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)
Network protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT, Wake On Lan (WOL)
VoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
FirewallPort forward, traffic rules, custom rules
DHCPStatic and dynamic IP allocation, DHCP Relay, Relayd
QoS / Smart Queue Management (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNSSupported >25 service providers, others can be configured manually
Network backupVRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover
Load balancingBalance your internet traffic over multiple WAN connections
SSHFS (optional)Possibility to mount remote file system via SSH protocol (not available in standard FW)
AuthenticationPre-shared key, digital certificates, X.509 certificates
FirewallPre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack preventionDDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLANPort and tag based VLAN separation
Mobile quota controlSet up custom data limits for both SIM cards
WEB filterBlacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access controlFlexible access control of TCP, UDP, ICMP packets, MAC address filter
Secure BootCryptographic integrity check of the each system boot process (available on device with special order code RUT955T073B0).
OpenVPNMultiple clients and server can be running simultaneously, 12 encryption methods
IPsecIKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
GREGRE tunnel
PPTP, L2TPClient/Server services can run simultaneously
StunnelProxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code
DMVPNMethod of building scalable IPsec VPNs
SSTPSSTP client instance support
ZeroTierZeroTier VPN
WireGuardWireGuard VPN client and server support
ID rangeRespond to one ID in range [1;255] or any
Allow Remote AccessAllow access through WAN
Custom registersMODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
Supported functions01, 02, 03, 04, 05, 06, 15, 16
Supported data formats8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
Supported baud ratesFrom 300 to 115200
Supported functions01, 02, 03, 04, 05, 06, 15, 16
Number of data bitsFrom 5 to 8
Number of stop bits1 or 2
ParityNone, Even, Odd
FlowNone, RTS/CTS, Xon/Xoff
DuplexFull duplex
Supported baud ratesFrom 300 to 115200
Supported functions01, 02, 03, 04, 05, 06, 15, 16
Number of data bits8
Number of stop bits1
ParityNone, Even, Odd
FlowNone, Xon/Xoff
DuplexHalf duplex
ProtocolHTTP(S), MQTT, Azure MQTT
MQTT gatewayAllows sending commands and receiving data from MODBUS Master through MQTT broker
Supported modesTCP Master, DNP3 Outstation, RTU Master
WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTAFirmware update from server, automatic notification
SSHSSH (v1, v2)
SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET
CallReboot, Status, WiFi on/off, Mobile data on/off, Output on/off, answer/hang-up with a timer
TR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTTMQTT Broker, MQTT publisher
SNMPSNMP (v1, v2, v3), SNMP trap
MODBUSMODBUS TCP status/control
RMSTeltonika Remote Management System (RMS)
Cloud of ThingsAllows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorxAllows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
CumulocityAllows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
Azure IoT HubCan send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server
CPUAtheros Wasp, MIPS 74Kc, 550 MHz
FLASH storage16 MB, SPI Flash
WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup, restore point
FOTAUpdate FW/configuration from server
RMSUpdate FW/configuration for multiple devices
Keep settingsUpdate FW without losing current configuration
Operating systemRutOS (OpenWrt based Linux OS)
Supported languagesBusybox shell, Lua, C, C++
Development toolsSDK package with build environment provided
GNSSGPS, GLONASS, BeiDou, Galileo and QZSS
CoordinatesGNSS coordinates via WebUI, SMS, TAVL, RMS
NTRIPNTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server softwareSupported server software TAVL, RMS
GeofencingConfigurable multiple geofence zones
RS232DB9 connector, full RS232 (with RTS, CTS)
RS485RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate
Serial functionsConsole, Serial over IP, Modem, MODBUS gateway, NTRIP Client
Input1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4 pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)
Output1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4 pin power connector)
Data rateUSB 2.0
ApplicationsSamba share, USB-to-serial
External devicesPossibility to connect external HDD, flash drive, additional modem, printer
Storage formatsFAT, FAT32, NTFS
Physical sizeMicro SD
ApplicationsSamba share, Storage Memory Expansion, DLNA
CapacityUp to 64 GB
Storage FormatsFAT32, NTFS, ext2, ext3, ext4
Connector4 pin industrial DC power socket
Input voltage range9 – 30 VDC reverse polarity protection; surge protection >31 VDC 10us max
PoE (passive)Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
Power consumption< 2 W idle, < 7 W Max

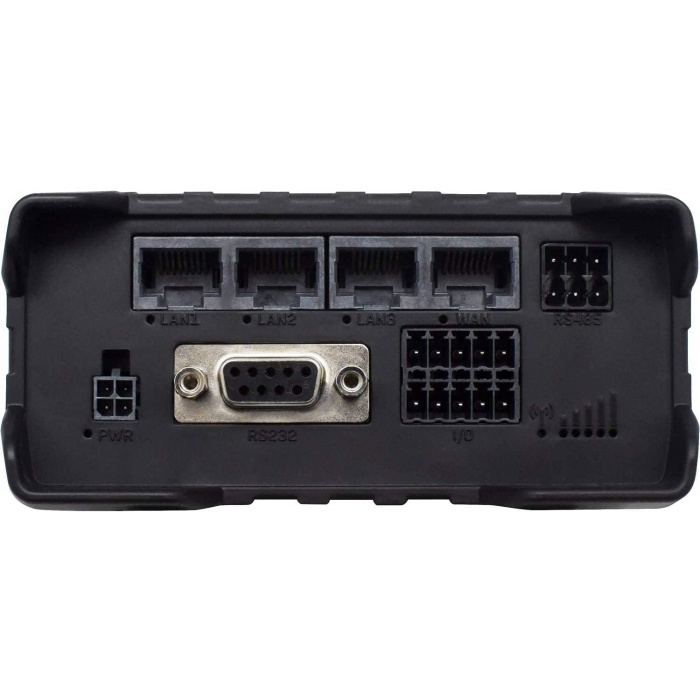

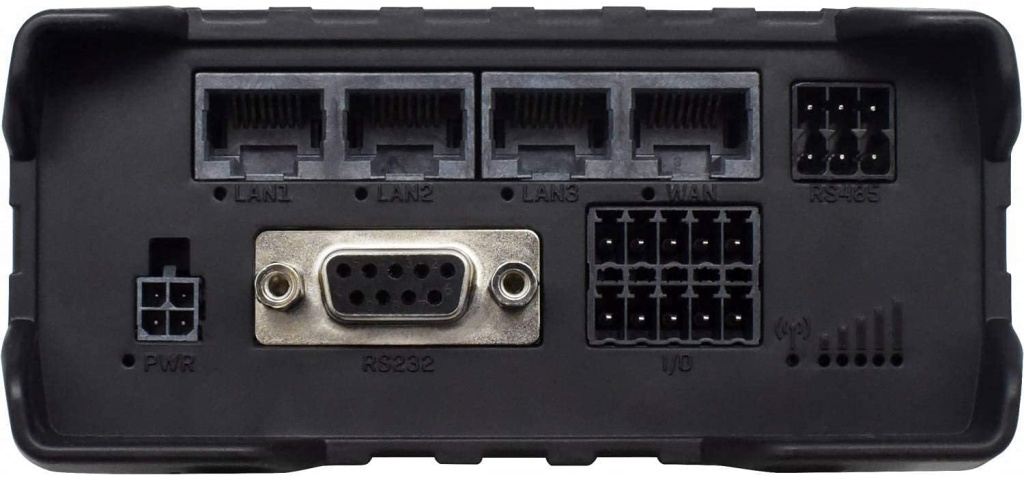

Ethernet4 x RJ45 ports, 10/100 Mbps
I/O’s2 x Inputs and 2 x Outputs on 10 pin industrial socket, 1 x Digital input and 1 x Digital output on 4 pin power connector (available from HW revision 1600)
Status LEDs1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED
SIM2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
Power1 x 4 pin power connector
Input/output1x 10 pin industrial socket for inputs/outputs

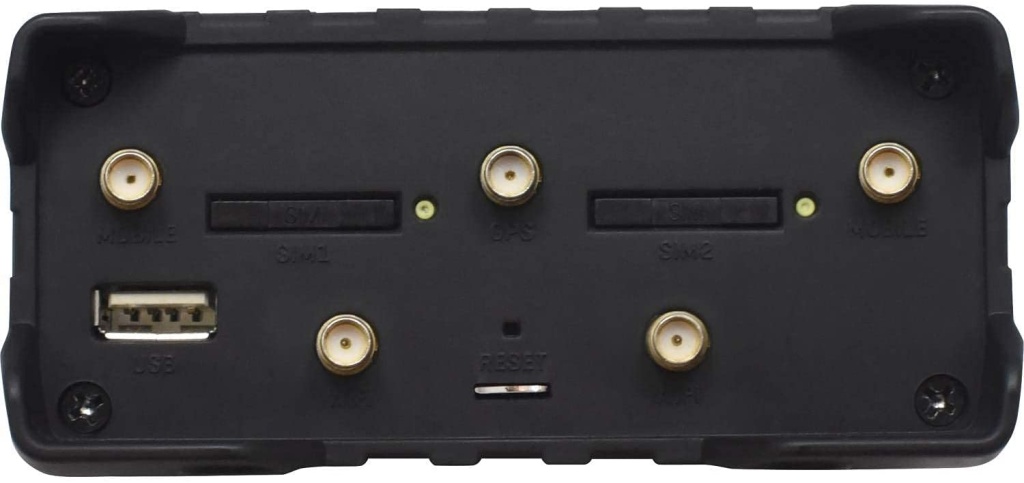

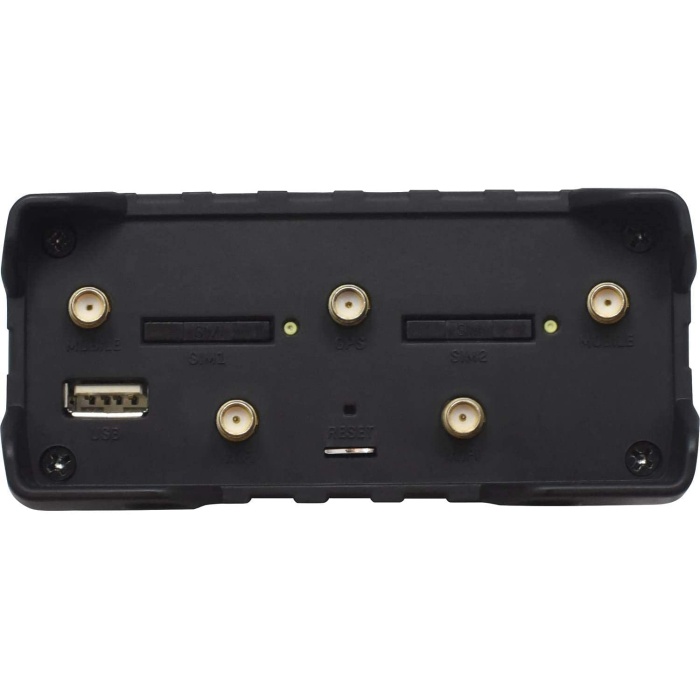

Antennas2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x SMA for GNSS
USB1 x USB A port for external devices
SD cardMicro SD card slot
RS2321 x DB9 socket
RS4851 x 6 pin industrial socket
ResetReboot/User default reset/Factory reset button
Casing materialAluminium housing, plastic panels
Dimensions (W x H x D)110 x 50 x 100 mm
Weight287 g
Mounting optionsDIN rail (can be mounted on two sides), flat surface placement
Operating temperature-40 °C to 75 °C
Operating humidity10% to 90% non-condensing
Ingress Protection RatingIP30
RegulatoryCE/RED, FCC, IC/ISED, EAC, RCM, PTCRB, RoHS, WEEE, Wi-Fi Alliance CE/RED, FCC, IC, PTCRB, RCM, EAC, CCC, RoHS, WEEE, IP rating, Anatel, GCF, REACH, E-mark, DNV GL, ECE Regulation 118, Morocco ANRT, Thailand NBTC, Ukraine UCRF, SDPPI (POSTEL), WiFi Certified, MODBUS Conformance
OperatorAT&T, Verizon
VehicleECE R10 (E-mark)
ECE R118
StandardsDraft EN 301 489-1 V2.2.0, Draft EN 301 489-17 V3.2.0, Draft EN 301 489-19 V2.1.0, Draft EN 301 489-52 V1.1.0
FCC 47 CFR Part 15B (2017), ANSI C63.4 (2014)
RSEN 61000-4-3:2006 + A1:2008 + A2:2010
EFTEN 61000-4-4:2012
Surge immunity (AC Power Line)EN 61000-4-5:2006
Surge immunity (Ethernet ports)EN 61000-4-5:2014, clause 7.1 of ITU-T K21
Transient and surgesISO 7637-2:2004
CSEN 61000-4-6:2009
DIPEN 61000-4-11:2004
StandardsEN 300 328 V2.1.1, EN 301 511 V12.5.1, EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.1, EN 303 413 V1.1.0
AS/CA S042.1:2018, AS/ACIF S042.3:2005, AS/CA S042.4:2018, AS/NZS 4268:2017
FCC 47 CFR Part 15C (2017), FCC 47 CFR Part 2 (2017), FCC 47 CFR Part 22H (2017), FCC 47 CFR Part 24E (2017), FCC 47 CFR Part 27C (2017)
RSS-Gen Issue 4 (2014), RSS-247 Issue 2 (2017), RSS-132 Issue 3 (2013), RSS-133 Issue 6 (2013), RSS-139 Issue 3, RSS-130 Issue 1
StandardsIEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013
AS/NZS 60950.1:2015
EN 50665:2017, EN 62311:2008
FCC 47 CFR Part 1 1.1310
RSS-102 Issue 5 (2015)
Ingress ProtectLST EN 60529:1999+A1+AC:2002
VibrationClass guideline-DNVGL-CG-0339:2016
EN 60068-2-6:2008
